Product Information

Product description

UV LED surface light source technology has no heat radiation, ultra-strong light intensity, low energy consumption, environmental protection, pollution-free, simple installation and space-saving, more importantly, the ultra-long service life of UV LED can reduce customer investment and use costs. In industrial production, stability, reliability and shorter curing time are very important indicators, UV LED technology has many advantages over the traditional way, destined to its leading position in the field of curing. Over the years, sharp technology has been focused on UV LED technology research and innovation, with a number of patents. Its product performance is good, high efficiency, long life, solid and durable, maintenance cost is almost zero, and for customers to propose practical program.

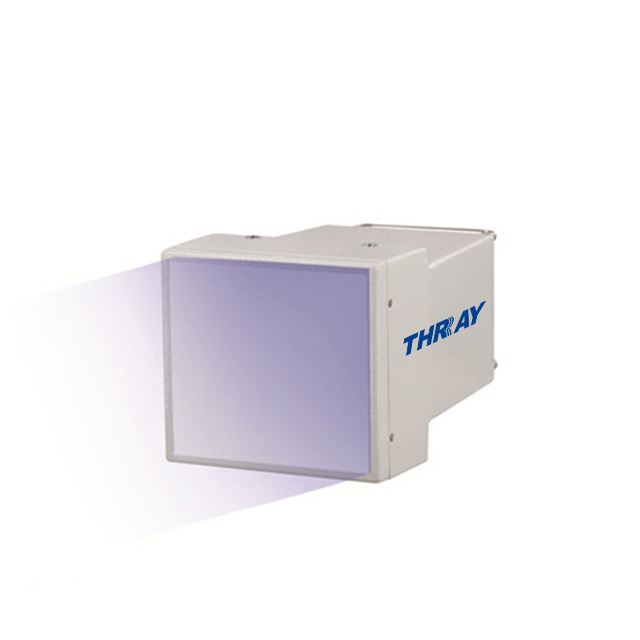

THRAYRAD1V curing lamp uses high-performance UV LED array optimized design, for curing high efficiency and quality stability to provide guarantees. Sharp has a strong software and hardware R & D team, according to the different needs of different customers, to meet the perfect use of customers in many areas. If you would like to experience our products, please contact us, we will provide you with free consultation or live demonstration.

Scope of application

• 1、Production of display screens, loudspeakers, speakers, receivers and headphones

• 2、Offset printing

• 3、Gravure, lithographic, relief, screen printing

• 4、Paper finish

• 5、Product surface coating

Product characteristics

1.Compact design, large luminous area

2.Low power consumption and long service life

3.High Energy, uniform and stable output

4.In addition to the Rad series controller which can be used to control the device switch independently, other control methods such as foot switch and photoelectric switch can be added according to the different requirements of customers.

Product Classification: UV LED surface light source

Luminous Area: 100 * 100 MM (customizable)

Wavelength: 365 Nm, 385 nm, 405 nm, 465 nm

Heat dissipation: High Efficiency Air Cooling

Control Mode: Manual, automatic

External mode: I/O, RS232

Product advantage

1.The design is compact and the luminous area is large.

2. the design is flexible, one controller can control two lamp caps, and two lamp caps can also be different wavelengths of light source

3. Long Service Life & GT; 20,000 hours, simple maintenance, lower maintenance cost

4. high-power high-performance LED chip module, stable light source output, good uniformity, high curing efficiency.

5. Friendly man-machine interface with communication i/o interface.

6. on-off, no waiting time, instant lighting, can achieve the set power (1-100%) output.

7. Cold light source, no heat radiation, no harmful heavy metal elements, safety, environmental protection, energy conservation.
